VARIOKIT VST Heavy-Duty Tower in action
-

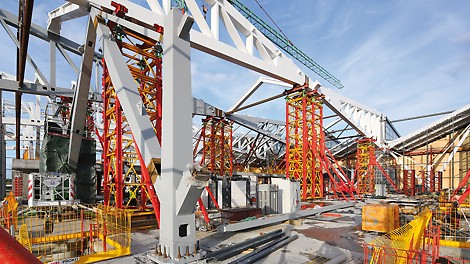

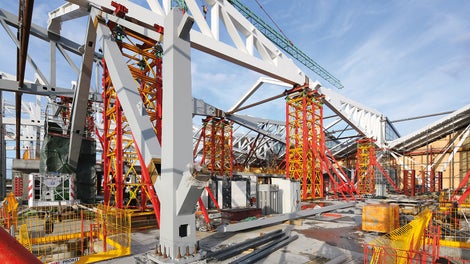

![VARIOKIT Heavy-Duty Shoring Towers as a temporary supporting structure during the assembly of a steel hall at an airport terminal.]( "VST Heavy Duty Tower")
Gyorsan felépíthetőA csapos csatlakozásoknak és az előszerelt toronyszegmenseknek köszönhetően, 10 m-ig
-

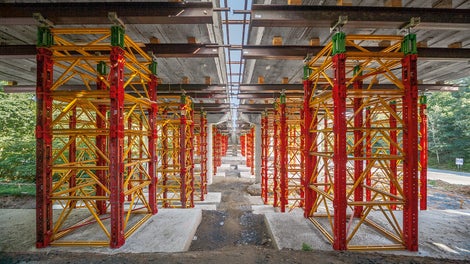

![Load-bearing: VST Heavy-Duty Shoring Towers on the basis of the VARIOKIT Engineering Construction Kit safely carry up to 700 kN per leg.]( "VST Heavy Duty Tower")
Gazdaságos megoldásA PERI bérleti parkjában minden rendszerelem elérhető
-

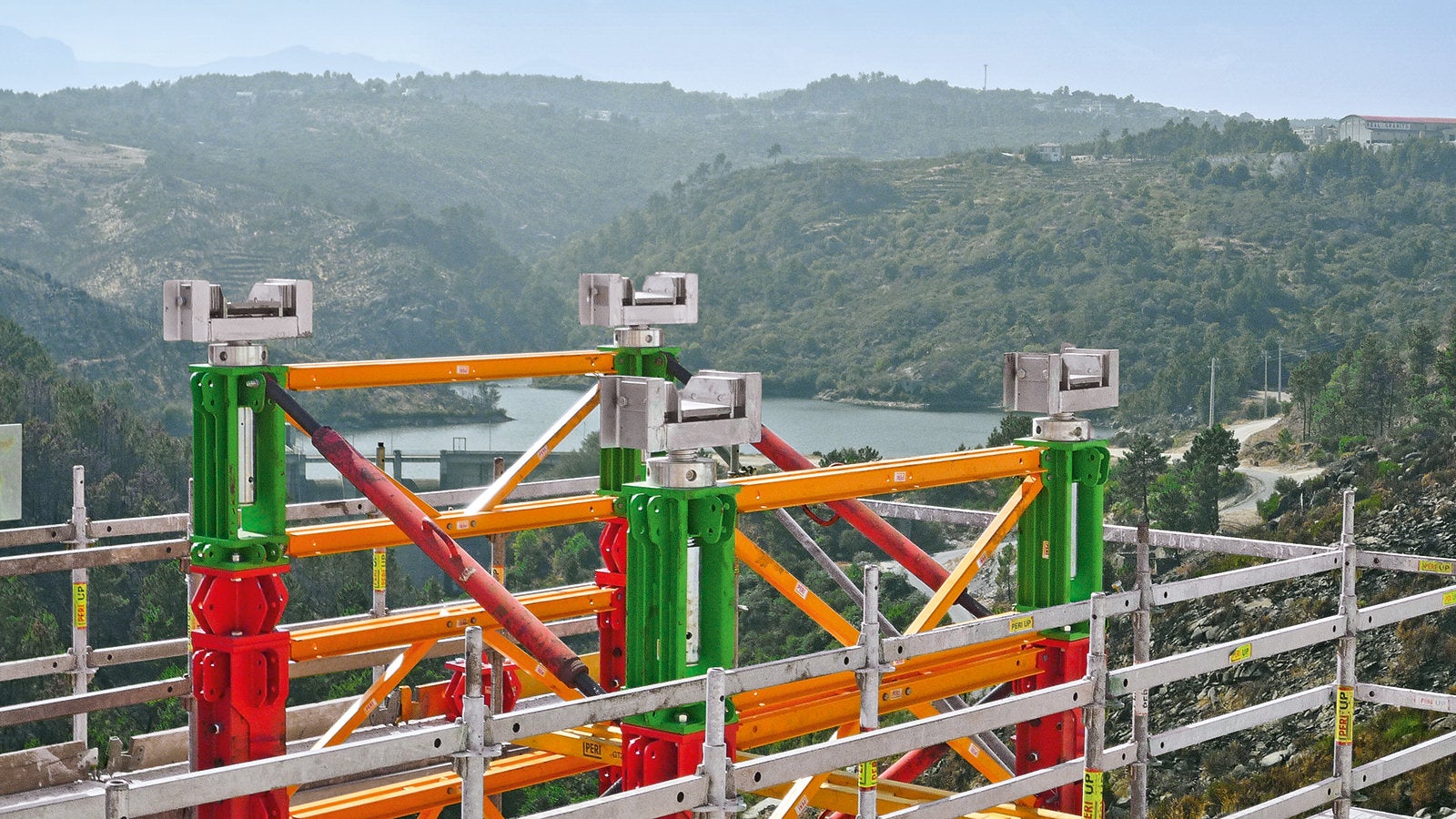

![The heavy shoring tower can also be easily raised and lowered when loaded – thanks to the head spindle and mobile hydraulics.]( "VST Heavy Duty Tower")
Egyszerű magasság beállításMobil hidraulikával, mellyel a fejtámasz teljes terhelés alatt működtethető
További információ
Variations
Through the incorporation of standardised system components, it is possible to create various shoring systems:
4-leg towers
Dimensions of 2 m x 2 m in its standard configuration. Or in each statically required dimension up to a max. of 6.50 m x 6.50 m
Towers with additional legs
In areas that have to bear heavy loads, the load-bearing capacity can be doubled in-situ through the use of additional legs.
Birdcage scaffold
By connecting individual shoring tower frames, it is also possible to increase the cross-sectional stiffness in the second direction.
Main beam frames
In the area of abutments and piers, the system can also be implemented as main beam frames up to a height of 10 m, but only with the head support.
További információért hívjon minket a +36 1 296-0960 telefonszámon!
